Installation

pip install codelogician
export IMANDRA_UNIVERSE_KEY="your-api-key-here"

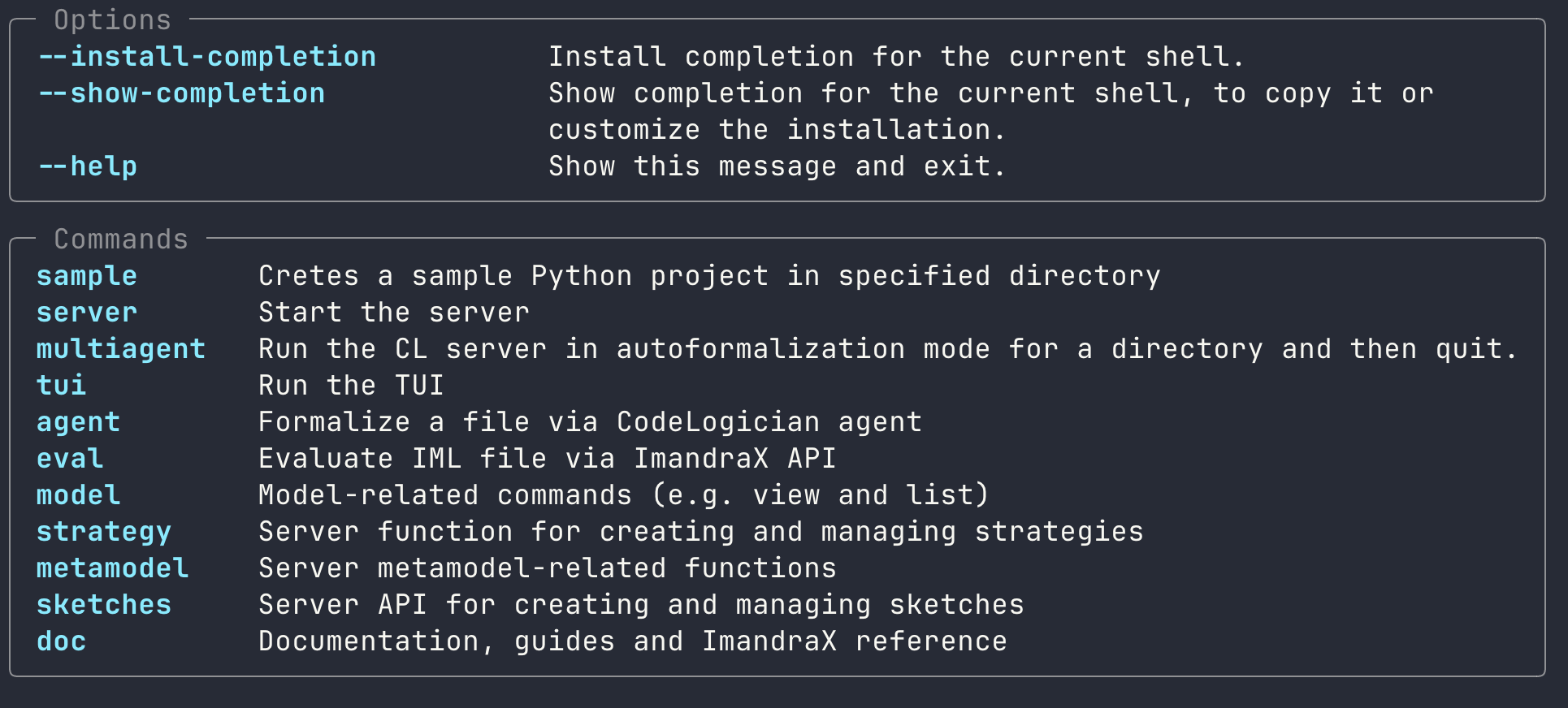

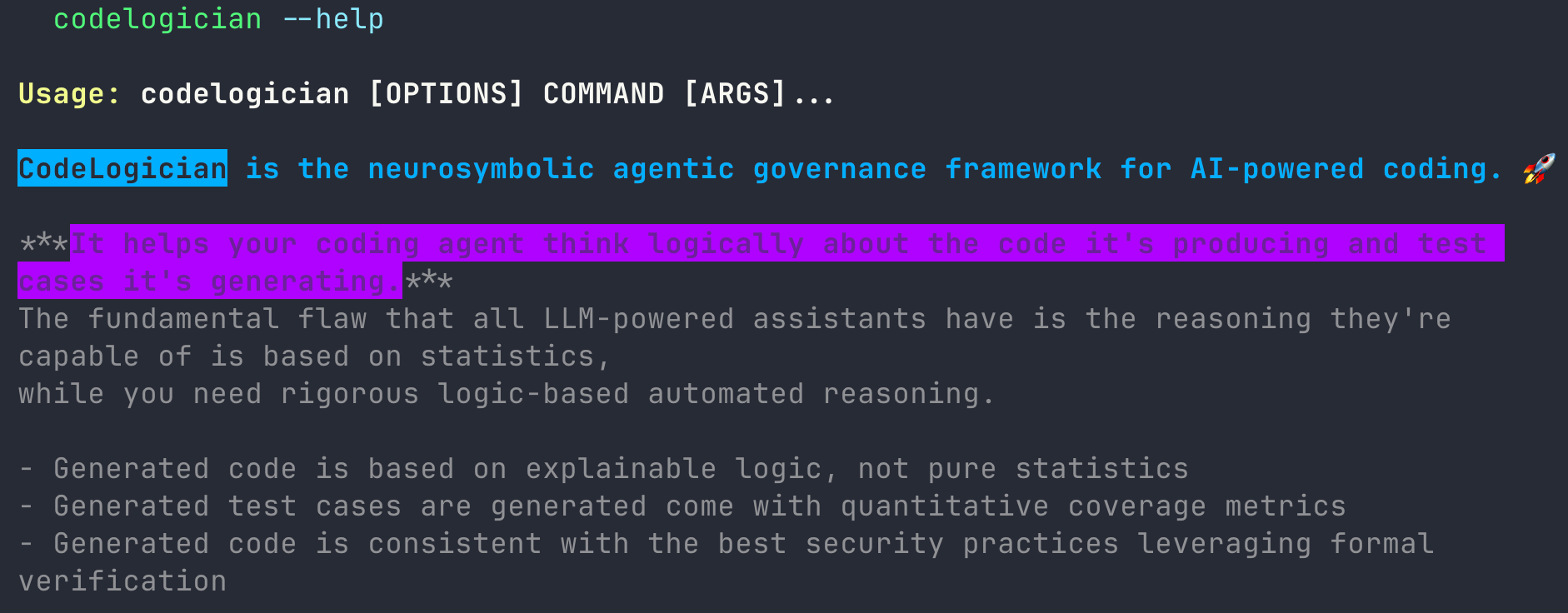

codelogician --help

Overview

Here we'll focus on the codelogician doc sub-command, which includes comprehensive documentation, guides, and reference materials for ImandraX / IML. It's designed for use by both humans and LLMs in terminal environments (Claude Code, Codex, Gemini CLI, etc.).

CodeLogician has MCP implementation but CodeLogician CLI is best suited for CLI coding assistants because it enables a rapid feedback loop using CLI commands and provides flexible file system integration. For example, Claude Code can dump ImandraX API reference to markdown files easily using codelogician doc dump and then use grep or any other shell utils to search it based on task.

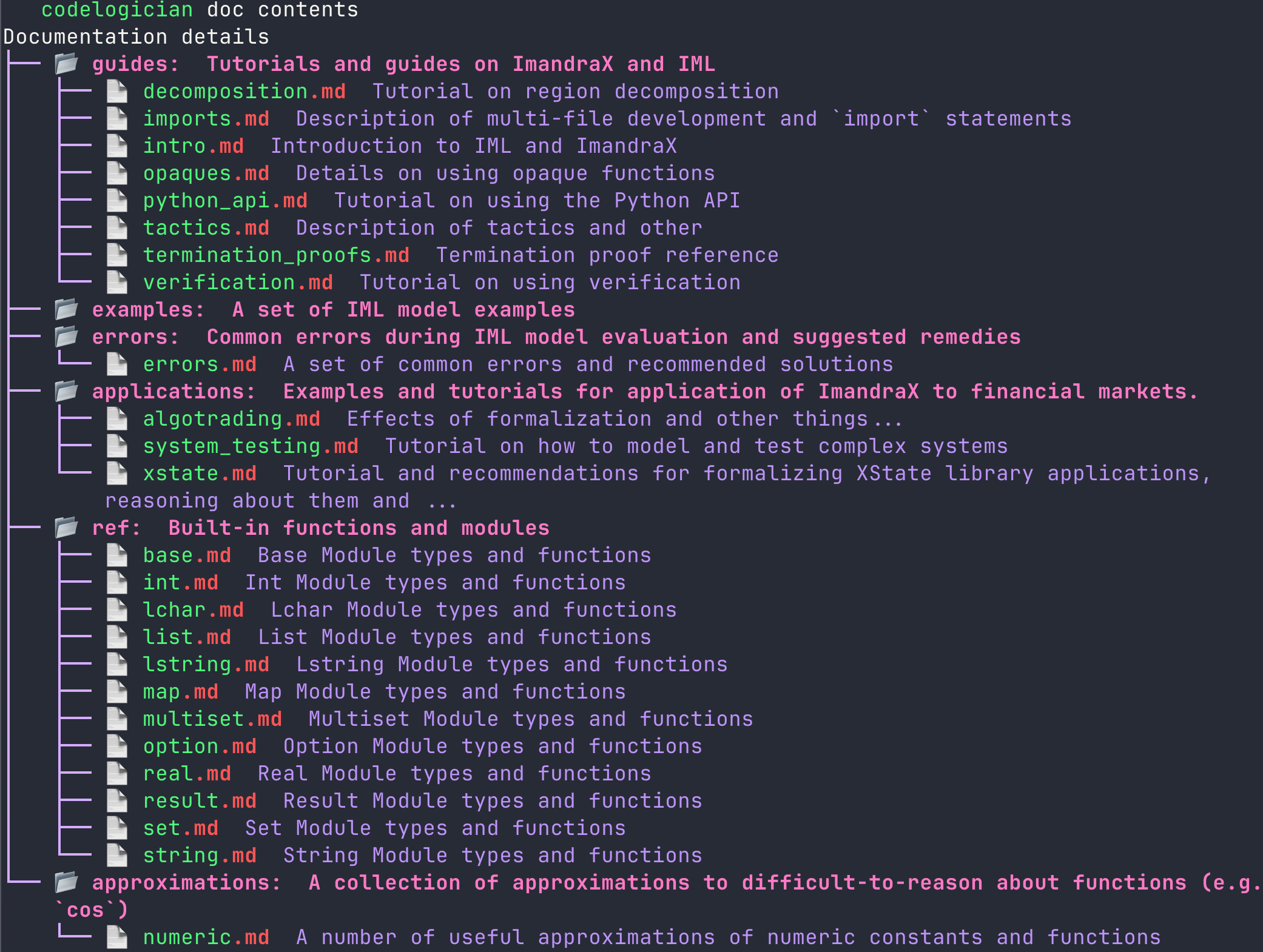

Documentation encompasses general introductory guides about ImandraX and IML, detailed API reference, and practical application examples. It also has content that is tailored for LLM usage (codelogician doc prompt)

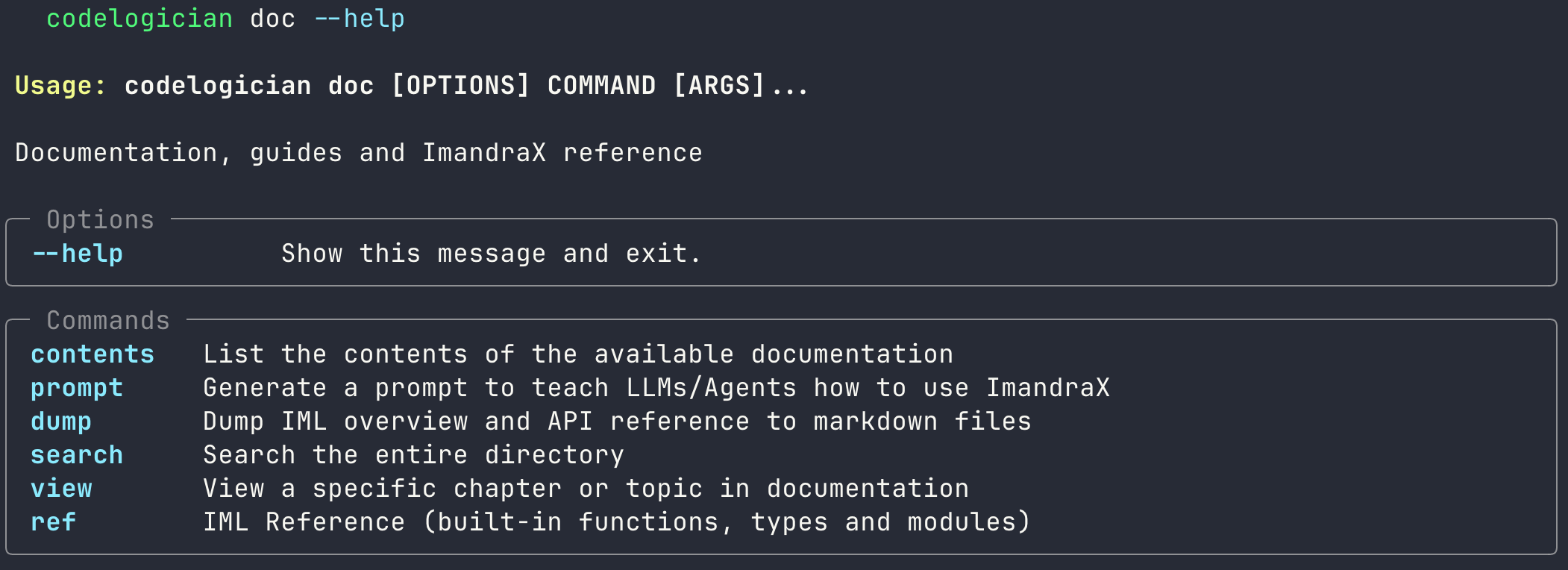

CodeLogician CLI enables a wide range of interaction with the doc, including viewing the API reference directly, using built-in fuzzy search, or dumping full documentations to searchable markdown files.

Example: Traffic Light System

The most straightforward way to integrate CodeLogician CLI with your CLI coding agent is simply inform it about the existence of CodeLogician CLI, by prompting something like "codelogician CLI is available in current shell. Please take a look at it and use codelogician doc command to learn about ImandraX and IML."

As an example, we try to build a traffic light control system using Claude Code with the help of CodeLogician.

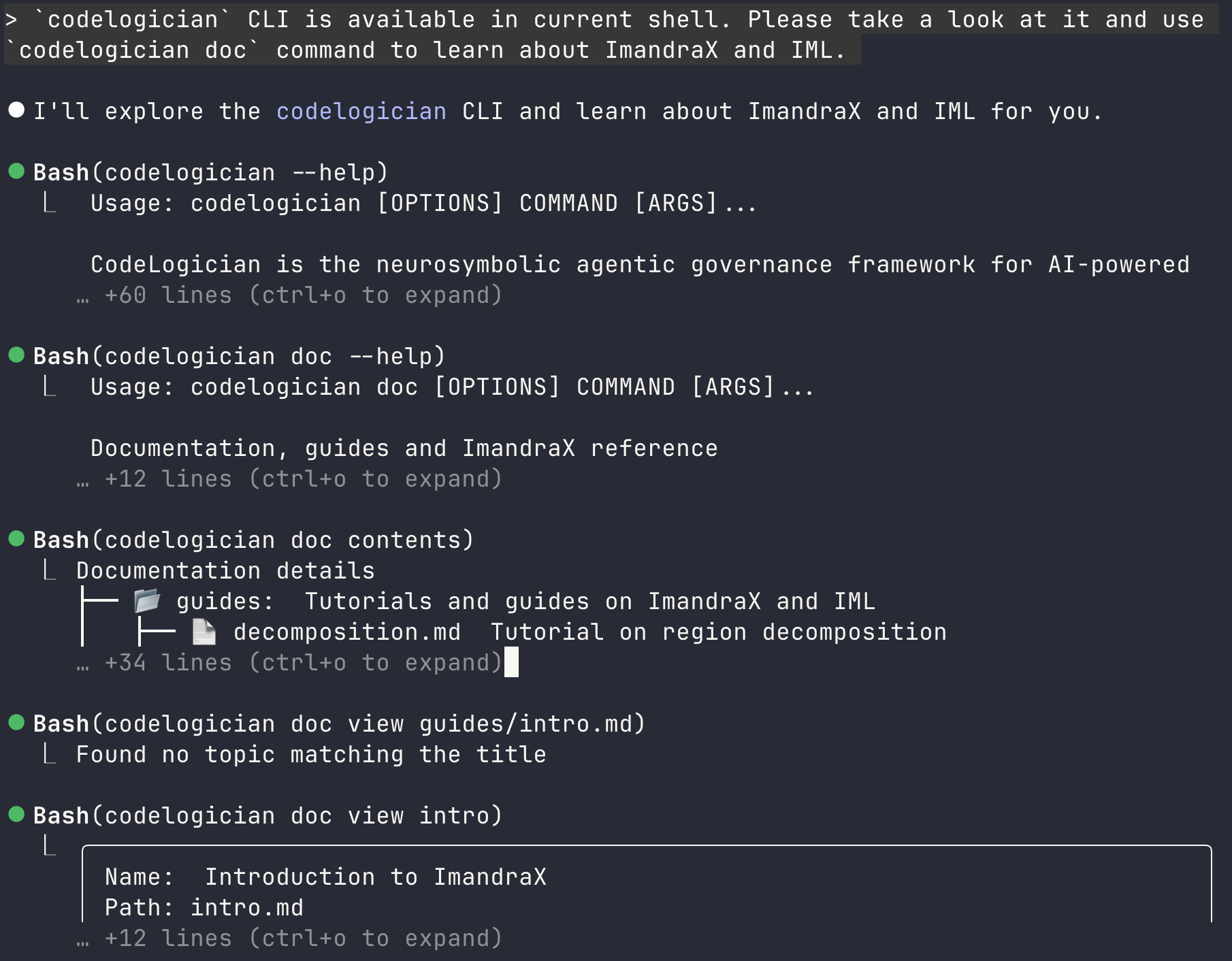

We start by informing the existence of CodeLogician CLI and ask Claude Code to explore it.

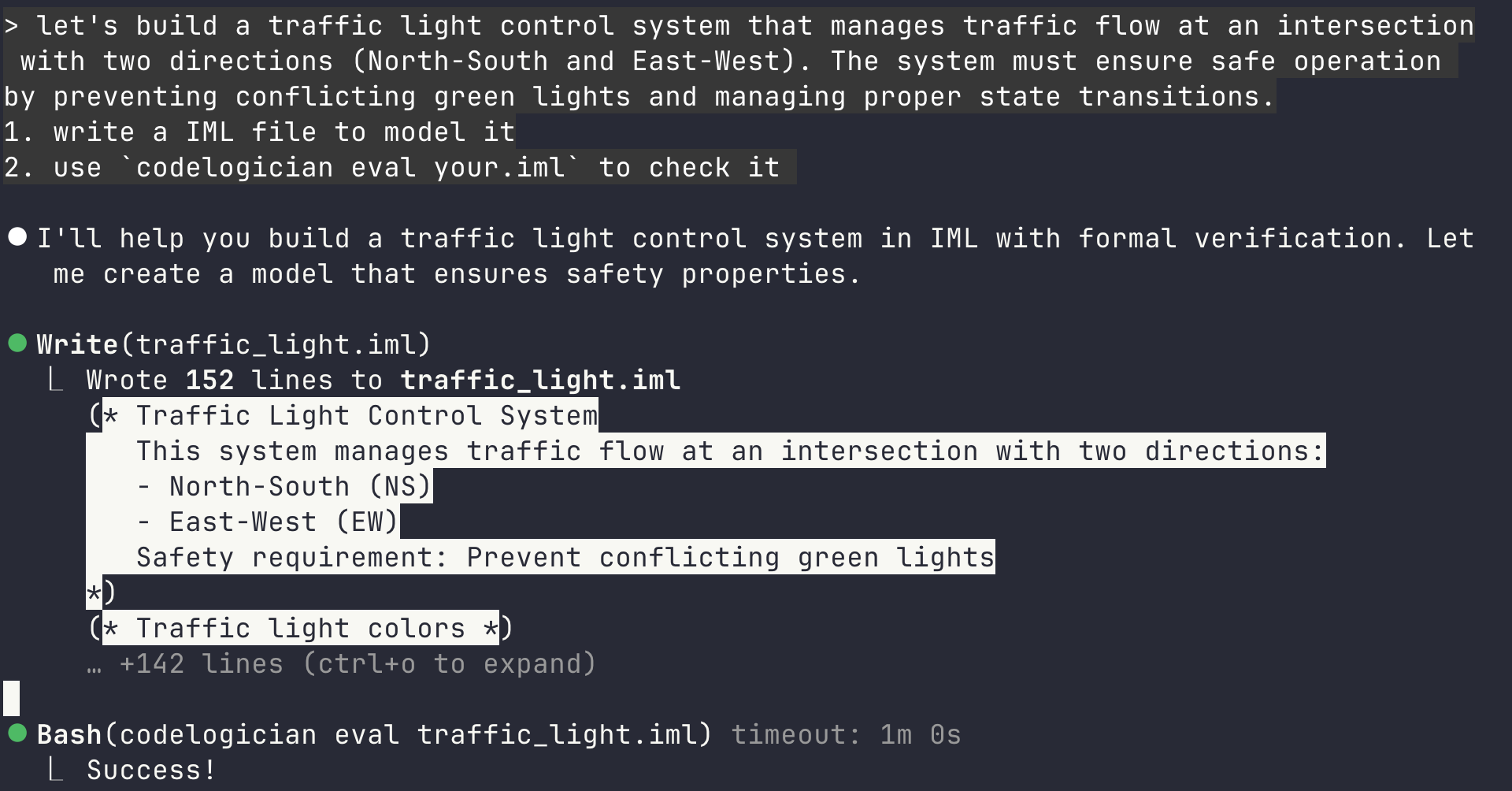

Claude Code (and any other terminal coding agent) will stop once it thinks it has enough confidence with IML. We then specify our task requirement.

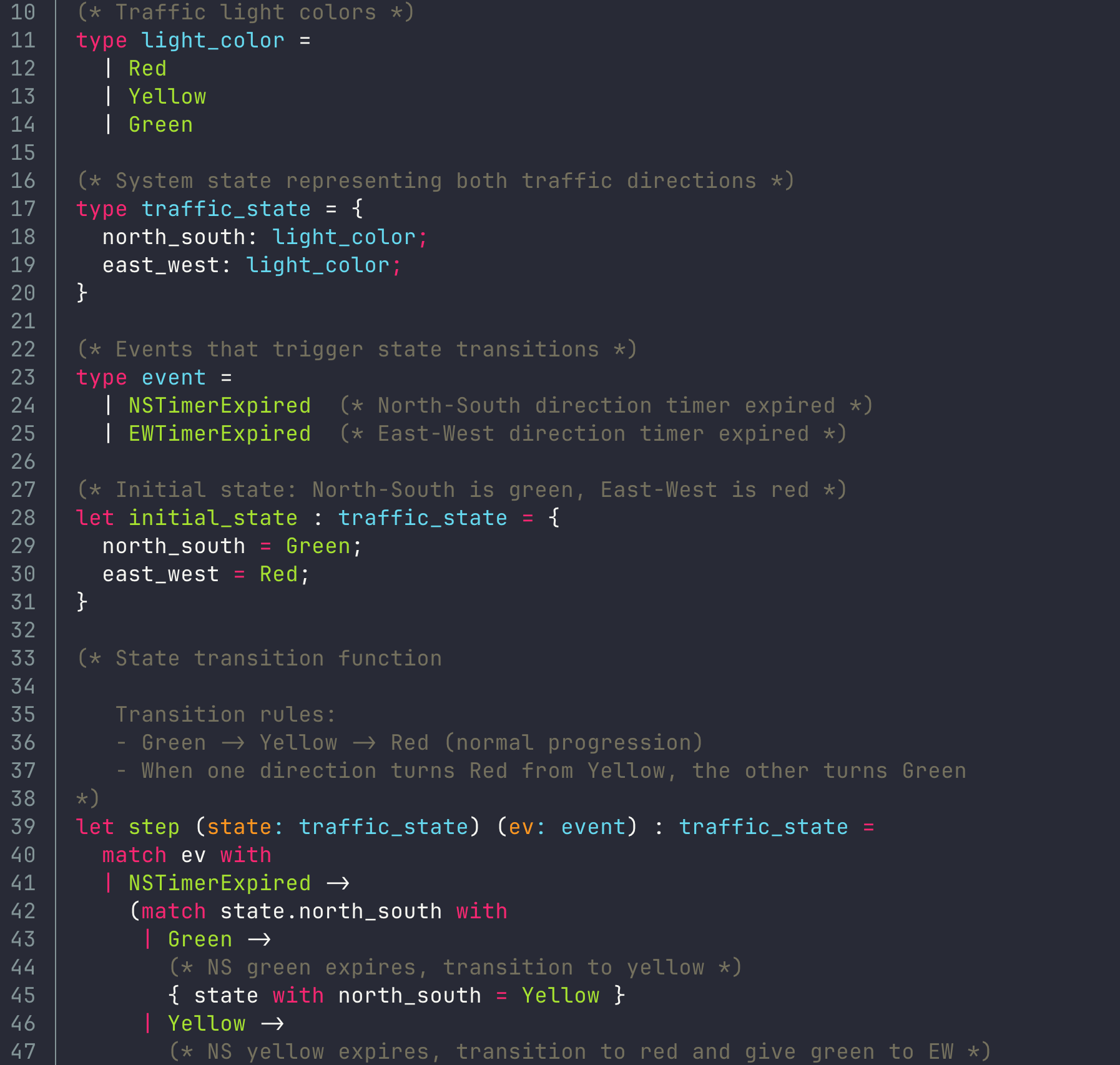

With the help of pre-loaded context about IML, it succeed in writing the IML code in one shot. We can see definition of types and the core state transition functions.

(* Traffic light colors *)
type light_color =
  | Red
  | Yellow
  | Green

(* System state representing both traffic directions *)
type traffic_state = {
  north_south: light_color;
  east_west: light_color;
}

(* Events that trigger state transitions *)
type event =
  | NSTimerExpired  (* North-South direction timer expired *)
  | EWTimerExpired  (* East-West direction timer expired *)

(* Initial state: North-South is green, East-West is red *)
let initial_state : traffic_state = {
  north_south = Green;
  east_west = Red;
}

(* State transition function

   Transition rules:
   - Green -> Yellow -> Red (normal progression)
   - When one direction turns Red from Yellow, the other turns Green
*)
let step (state: traffic_state) (ev: event) : traffic_state =
  match ev with
  | NSTimerExpired ->
    (match state.north_south with
     | Green ->
       (* NS green expires, transition to yellow *)
       { state with north_south = Yellow }
     | Yellow ->
       (* NS yellow expires, transition to red and give green to EW *)
       { north_south = Red; east_west = Green }
     | Red ->
       (* NS already red, no change *)
       state)
  | EWTimerExpired ->
    (match state.east_west with
     | Green ->
       (* EW green expires, transition to yellow *)
       { state with east_west = Yellow }
     | Yellow ->
       (* EW yellow expires, transition to red and give green to NS *)
       { east_west = Red; north_south = Green }
     | Red ->
       (* EW already red, no change *)
       state)

In addition, Claude Code outputs some safety properties as functions without asking. is_safe captures the fact that we don't want traffic collision due to the same direction being green stimultaneously.

(* Safety property: No conflicting green lights

   Critical safety invariant - both directions cannot be green simultaneously
*)
let is_safe (state: traffic_state) : bool =
  not (state.north_south = Green && state.east_west = Green)

(* Safety invariant: System maintains safety after any single transition

   This verifies that from any safe state, applying any event
   results in another safe state
*)
let safety_preserved (state: traffic_state) (ev: event) : bool =
  if is_safe state then
    is_safe (step state ev)
  else
    true

...

(* Property: Both directions cannot be yellow simultaneously

   In a well-designed system, yellows should not overlap
*)
let no_double_yellow (state: traffic_state) : bool =
  not (state.north_south = Yellow && state.east_west = Yellow)

We can easily harness the theorem-proving features of ImandraX using verify statement in VSCode (CodeLogician CLI will be able to do this without the help of IDE in near future).

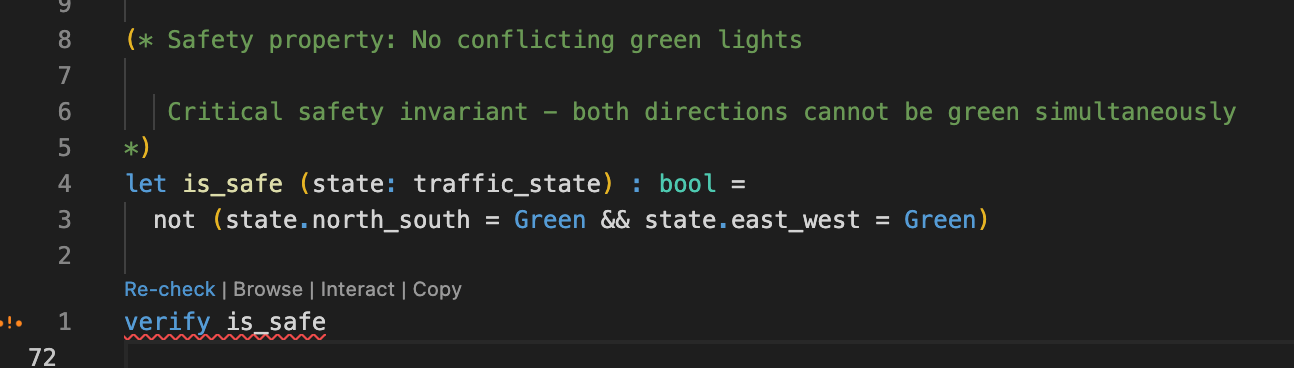

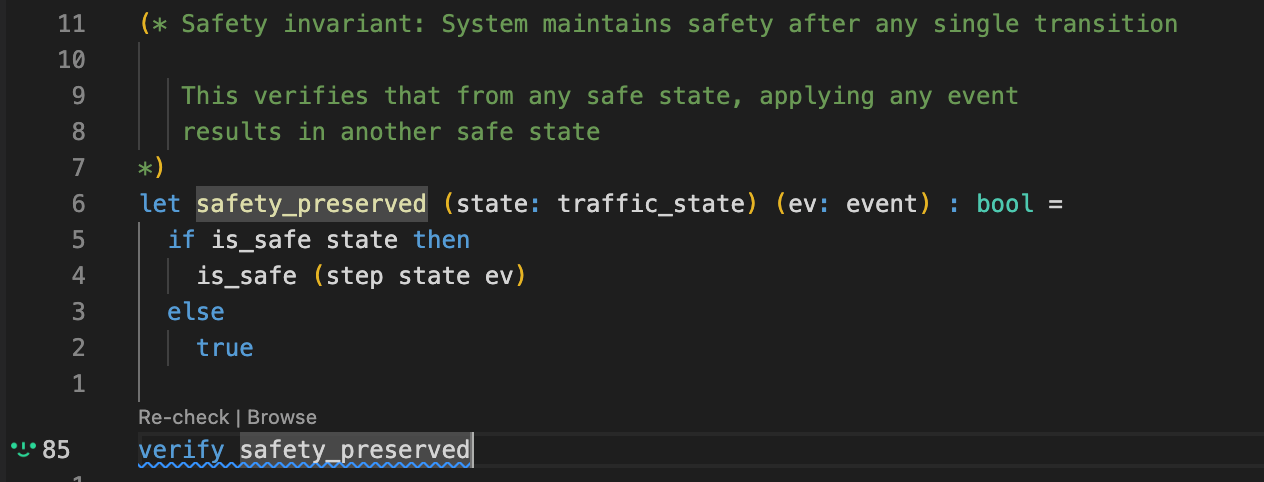

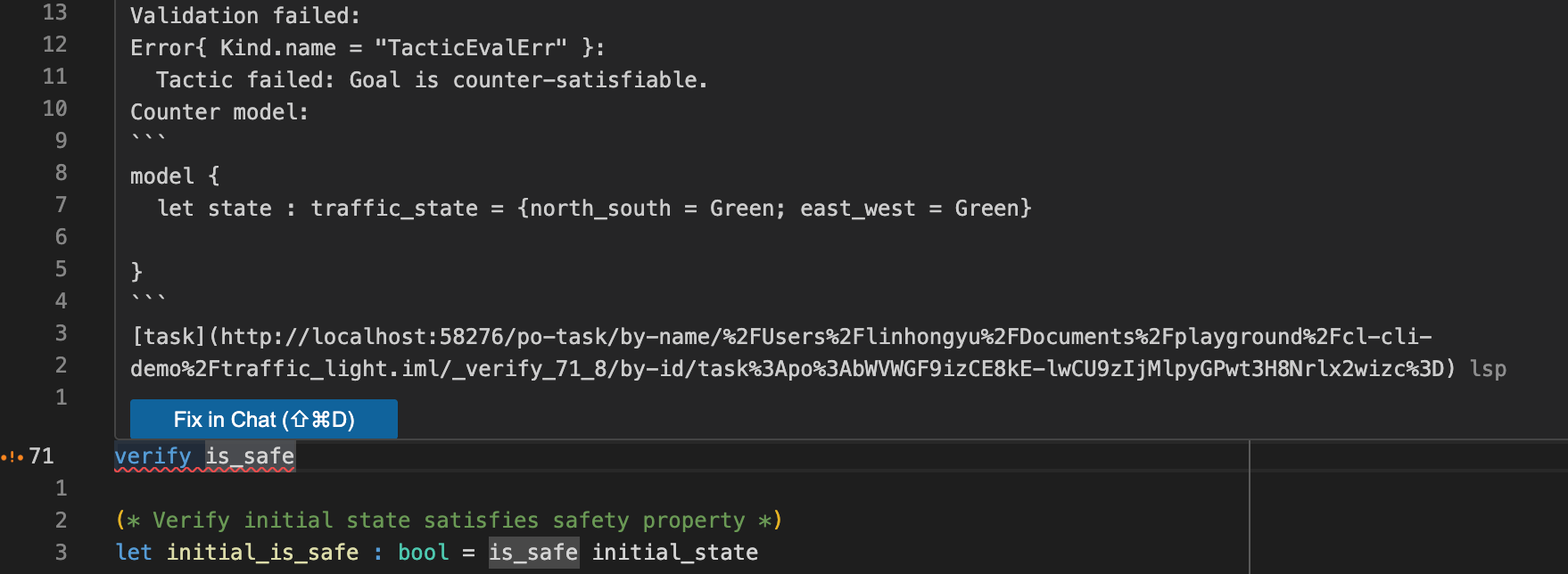

For the naive is_safe property, ImandraX refutes it with an counter-example where both directions start with green light. For safety_preserved property, ImandraX proved it. Therefore, we can confidently conclude that if we start from a safe state, our traffic light system will not experience collision accidents.

Further more, we can add a more subtle requirement forbid both lights to be yellow at the same time. A real-world rationale for this might be the consideration that in high-speed intersections, two aggressive drivers might run into a collision if they both choose to speed up to proceed when seeing yellow light.

(* Property: Both directions cannot be yellow simultaneously

   In a well-designed system, yellows should not overlap
*)
let no_double_yellow (state: traffic_state) : bool =
  not (state.north_south = Yellow && state.east_west = Yellow)

(* Check that our transition function maintains this property *)
let no_double_yellow_preserved (state: traffic_state) (ev: event) : bool =
  if no_double_yellow state then
    no_double_yellow (step state ev)
  else
    true

This property is refuted by ImandraX with an counter-example as we didn't consider this in the step function.

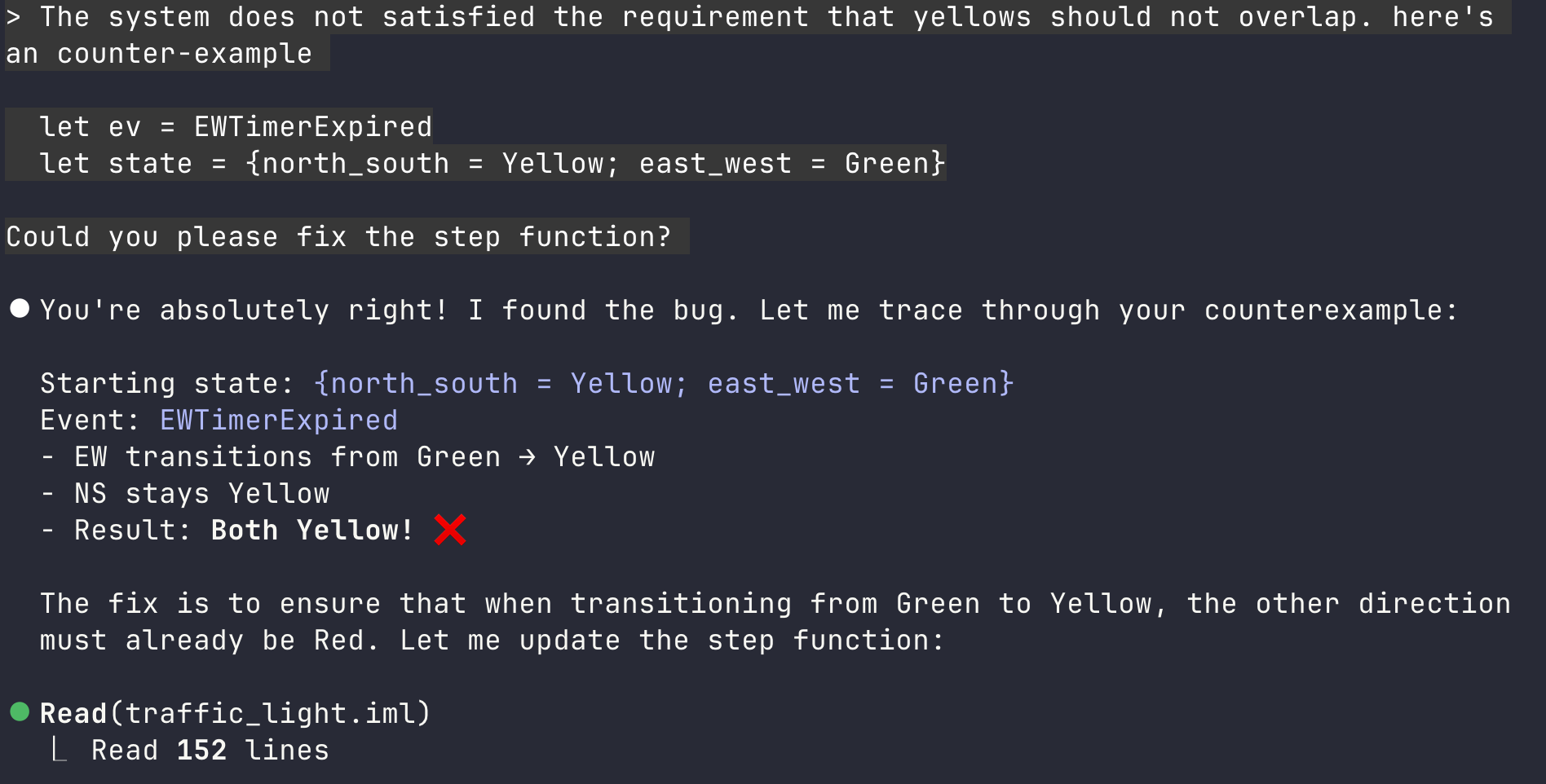

Let's ask Claude Code to fix it.

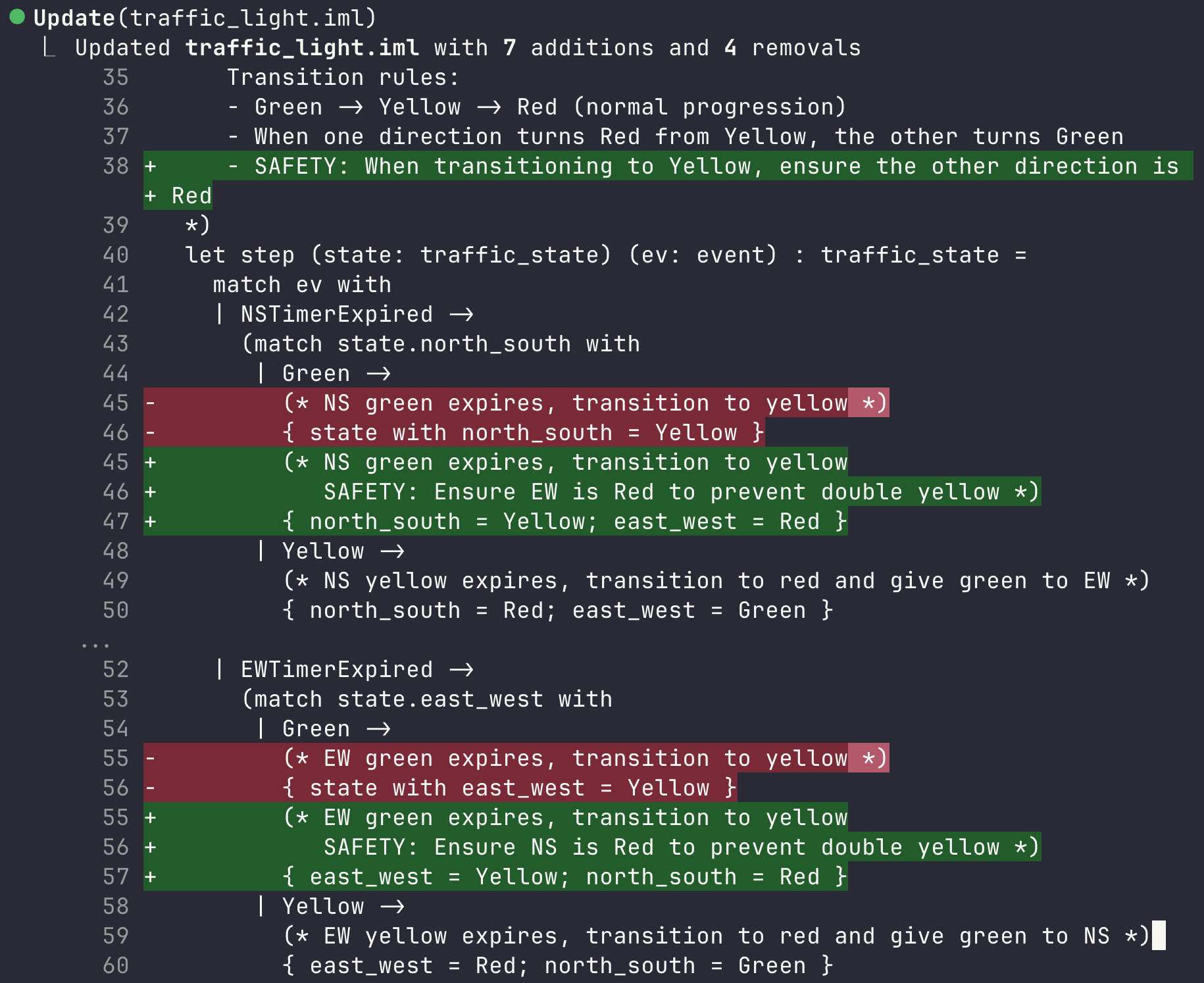

Now we get a new version of traffic light system that is more defensive.

In the above example, we start from natural language specifications and obtain formally verified IML code in the end. CodeLogician helps us refine our ambiguous spec to concrete logical properties that can be proved or disproved. You can equivalently start from an existing project written in some language (e.g. Python) and utilize CodeLogician to generate a digital twin in IML that can be formally verified.
